When selecting a heat exchanger for an outdoor furnace, compatibility, size, and material quality are key factors. The Water to Air Heat Exchanger 12×15 stands out as the best overall for its balance of size and efficiency. The VEVOR 24×24 Finned Tube Coil offers impressive BTU output for larger setups, while the AB Plate Heat Exchanger excels in water-to-water applications with high durability. Buyers often face tough tradeoffs between size, cost, and performance. Continue reading for a detailed comparison to find the best fit for your needs.
Complete the kit
Key Takeaways
- Size and BTU capacity are primary factors influencing suitability for different outdoor furnace setups.
- Material quality, especially copper and stainless steel, significantly impacts durability and heat transfer efficiency.
- Water-to-air exchangers tend to be more versatile for residential heating, but water-to-water options excel in specific hydronic systems.
- Larger models often provide higher output but come with increased installation complexity and cost.
- Finned tube designs like VEVOR’s units offer high efficiency for cooling and heating in compact forms.
| heat exchanger for outdoor furnace | Material | Dimensions |
|---|---|---|
| Water to Air Heat Exchanger 12 | Steel shell, copper and aluminum fins | 12x15x3.5 inches |
| Water to Air Heat Exchanger 10 | Steel shell, copper and aluminum fins | 10×10 inches |
| 8×8 Water to Air Heat Exchange | — | 8×8 inches |
| Water to Air Heat Exchanger 22 | Steel shell, copper and aluminum fins | 22×24 inches |
| AB Plate Heat Exchanger | Copper, SS316L stainless steel | 4"x12" |
| AB Water to Air Heat Exchanger | Steel shell with copper and aluminum components | — |
| 20×20 Water to Air Heat Exchan | Copper tubes and aluminum fins | — |
| VEVOR Water to Air Heat Exchan | Copper and aluminum | — |
| 24" Side Arm Heat Exchanger Ou | Copper | — |
| 16×20 Water to Air Heat Exchan | Copper and aluminum | — |
| VEVOR Water to Air Heat Exchan | — | — |
| Water to Air Heat Exchanger 18 | Galvanized steel & copper | 18 x 18 inches |
| Water to Air Heat Exchanger 16 | Copper & aluminum | 16 x 16 inches |
| 17" Side Arm Heat Exchanger Ou | — | — |
| VEVOR Heat Exchanger Water to | — | 16 x 16 inches |
More Details on Our Top Picks
Water to Air Heat Exchanger 12×15 with 1″ Copper Ports for Outdoor Wood Furnaces, Residential Heating and Cooling, and Forced Air Heating
This model stands out for its high heat capacity of 67,500 Btu and ability to produce up to 360kBtu per hour, thanks to 12 aluminum fins and 3 rows of seamless copper tubes. Its support for water-air heat exchange from multiple sources like boilers and solar panels offers excellent flexibility, making it a top choice for those seeking efficiency in outdoor furnace setups. Compared with larger units like the 22×24 model, this one balances power with a compact size, simplifying installation without sacrificing performance. The epoxy-coated fins extend the lifespan, but the unit’s weight of 9.1 pounds and size of 12x15x3.5 inches may limit its use in very tight or heavy-duty applications. Overall, this pick makes the most sense for homeowners or small-scale commercial users needing a reliable, easy-to-install heat exchanger for outdoor systems.
Pros:- High heat capacity of 67,500 Btu with up to 360kBtu/hr output
- Supports multiple heat sources including boilers and solar panels
- Steel shell and brazed copper/aluminum construction for durability
- Epoxy-coated fins for prolonged lifespan
Cons:- Relatively compact size may limit maximum heat transfer in large systems
- No specific details on flow rate or pressure ratings beyond 175psi/350F
Best for: Families seeking a versatile, high-capacity heat exchanger compatible with renewable energy sources and straightforward to install.
Not ideal for: Large industrial outdoor furnace operators who require more robust, heavy-duty units with higher heat loads.
- Dimensions:12x15x3.5 inches
- Weight:9.1 pounds
- Heat Capacity:67,500 Btu
- Max Pressure:175 psi
- Max Temperature:350°F
- Material:Steel shell, copper and aluminum fins
Our verdict“Ideal for homeowners and small-scale applications needing a durable, efficient water-air heat exchanger with flexible installation options.”
Water to Air Heat Exchanger 10×10 with 1″ Copper Ports for Outdoor Wood Furnaces, Residential Heating and Cooling, and Forced Air Heating
This 10×10 unit provides a solid 42,000 Btu capacity, with the same 12 fins and 3 rows of seamless copper tubes as larger models like the 12×15, but in a smaller footprint. Its straightforward steel and copper construction supports durability under outdoor conditions, while being easier to fit into tighter spaces. The epoxy-coated fins help extend lifespan, but the smaller size means lower maximum heat output, making it more suitable for moderate heating needs. Installation versatility is maintained through direct pipeline connections with clamps or welds, yet the compact design might limit use for larger applications. Compared to bigger units, this one offers a more economical option for residential systems that don’t require maximum capacity but still benefit from high efficiency and durability.
Pros:- Compact size for easier installation in tight spaces
- Supports multiple renewable energy sources like boilers and solar panels
- Durable steel shell with brazed copper and aluminum fins
- Epoxy coating enhances lifespan
Cons:- Lower maximum heat output limits application scope
- Less suited for very large or high-demand systems
Best for: Homeowners with moderate heating loads seeking a reliable, budget-friendly water-air heat exchanger.
Not ideal for: Large commercial or industrial outdoor furnaces with high heat demand requiring larger units like the 22×24 model.
- Dimensions:10×10 inches
- Heat Capacity:42,000 Btu
- Support Pressure:175 psi
- Max Temperature:350°F
- Material:Steel shell, copper and aluminum fins
Our verdict“A cost-effective, space-saving choice for residential outdoor heating setups with moderate capacity needs.”

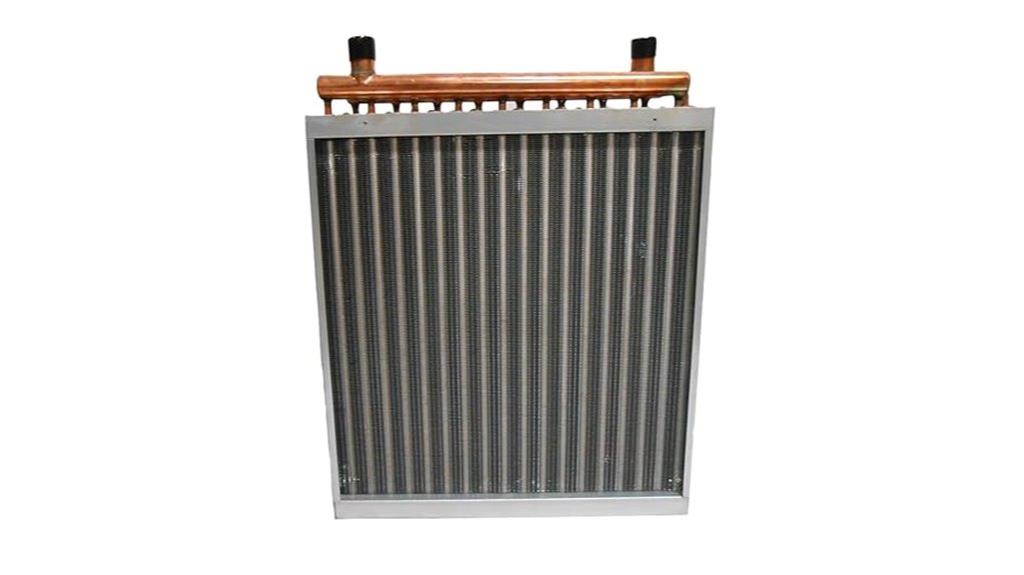

8×8 Water to Air Heat Exchanger Hot Water Coil Outdoor Wood Furnace
This 8×8 water-air heat exchanger is a compact option for small outdoor furnace setups, ideal where space constraints exist. Its use of 1″ copper connections ensures good thermal transfer, but limited technical details mean it’s best suited for smaller systems or supplemental heating rather than primary large-scale applications. Compared to models like the 12×15 or 22×24, this unit’s size simplifies mounting and integration, though it may not deliver the same high capacity. Its simple design focuses on ease of use, but without detailed specs, it’s less transparent about maximum pressure or flow rates, which could be a concern in more demanding setups. This pick makes sense for users who want a straightforward, space-efficient heat exchanger for modest outdoor heating projects.
Pros:- Small footprint for tight installation spaces
- Copper connections support good thermal transfer
- Simple, straightforward design for easy mounting
- Suitable for small-scale systems
Cons:- Limited technical data on capacity and pressure ratings
- Not suitable for high-demand or large-scale applications
Best for: Owners of small outdoor wood furnaces needing a compact, easy-to-install water-air heat exchanger.
Not ideal for: Large outdoor heating systems or commercial applications requiring higher BTU outputs or detailed specifications.
- Dimensions:8×8 inches
- Connections:1 inch copper
- Application:Small outdoor furnaces
Our verdict“A practical choice for small outdoor furnace owners who prioritize simplicity and space efficiency.”
Water to Air Heat Exchanger 22×24 with 1″ Copper Ports for Outdoor Wood Furnaces, Residential Heating and Cooling, and Forced Air Heating
This 22×24 water-air heat exchanger delivers a robust 200,000 Btu capacity, making it suitable for larger outdoor systems or demanding residential and small commercial applications. Its design features 12 aluminum fins and 3 rows of seamless copper tubes, similar to smaller units but scaled for maximum heat transfer efficiency. Its construction with a steel shell and brazed copper/aluminum fins ensures durability under high pressures and outdoor conditions. The larger size and higher capacity mean more complex installation, but the increased power makes it ideal for systems that require significant heat output. Compared with the 12×15, this model is better suited for bigger setups, though it comes with a higher price and more demanding space requirements. This unit makes sense for those needing serious heating capacity without sacrificing durability.
Pros:- High heat capacity of 200,000 Btu supports large systems
- Durable construction with brazed steel shell and copper/aluminum fins
- Supports renewable energy sources and hybrid systems
- Effective for residential and light commercial use
Cons:- Large dimensions may complicate installation
- Higher cost compared to smaller units
Best for: Small commercial outdoor furnace systems or large residential setups demanding high heat output.
Not ideal for: Small or budget-conscious homeowners with modest heating needs or limited space.
- Dimensions:22×24 inches
- Heat Capacity:200,000 Btu
- Material:Steel shell, copper and aluminum fins
- Connections:1 inch copper ports
Our verdict“Best suited for users who need substantial heat output and durable construction for outdoor furnace applications.”

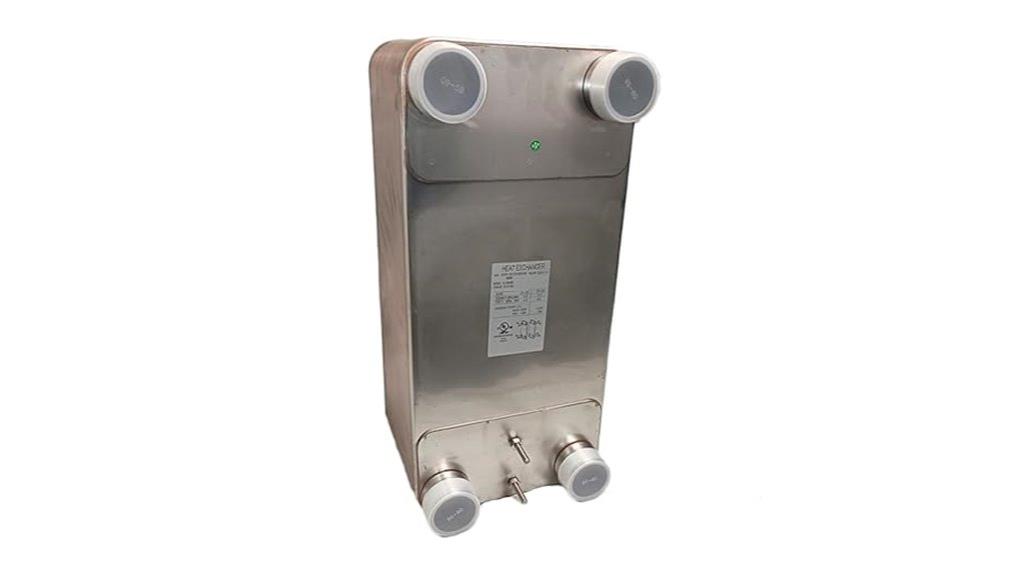

AB Plate Heat Exchanger, 4″x12″ 30 Plates Water To Water Heat Exchanger, Copper/SS316L Stainless Steel Brazed Plate Heat Exchanger For Floor Heating, Water Heating, Snow Melting
This 30-plate brazed plate heat exchanger excels in water-to-water transfers, making it ideal for floor heating, snow melting, and hydronic systems. Its construction from high-quality 316L stainless steel with copper edges offers excellent corrosion resistance and high-pressure durability, comparable to the AB model with 30 plates and 250,000 to 330,000 BTU capacity. It’s designed for applications where space is limited but efficiency is paramount, such as indoor hydronic heating or outdoor water heating systems. Compared to water-air models, this unit focuses on water-to-water transfer, providing highly efficient thermal exchange in a compact form factor. Its rugged construction and high BTU capacity make it a premium choice for demanding, space-constrained water heating projects, but it’s not suitable for air-based outdoor heating systems.
Pros:- High-quality 316L stainless steel and copper brazing for durability
- Compact size with 4″x12″ dimensions and 30 plates
- High BTU capacity up to 330,000 for efficient water heating
- Corrosion-resistant for long-term outdoor and indoor use
Cons:- Limited to water-to-water applications, not suitable for air heating
- Installation requires plumbing expertise due to pressure considerations
Best for: Home or commercial users needing a compact, high-efficiency water-to-water heat exchanger for floor heating or snow melting.
Not ideal for: Outdoor air-heating applications or users requiring water-air heat exchange systems.
- Dimensions:4″x12″
- Plates:30
- BTU Capacity:250,000-330,000
- Material:Copper, SS316L stainless steel
- Application:Water-to-water heating
Our verdict“Perfect for space-efficient, high-capacity water-to-water heating systems like floor heating or snow melting.”
AB Water to Air Heat Exchanger 18×20 with 1″ Copper Ports for Outdoor Wood Furnaces, Residential Heating and Cooling and Forced Air Heating
This water-to-air heat exchanger stands out for its high capacity of up to 360,000 Btu/hr, making it suitable for larger outdoor furnace setups. Compared to the Water to Air Heat Exchanger 12×15, it offers a broader surface area and enhanced performance due to 12 aluminum fins and triple copper tube rows, which translate into better heat transfer efficiency. Its steel shell and brazed copper-aluminum contact points provide durability under high pressure and temperature, though this robustness results in a slightly heavier unit. The epoxy-coated fins extend service life, but the installation flexibility, via clamps or welding, adds complexity for novices. This pick makes the most sense for those seeking a durable, high-performance exchanger capable of integrating multiple renewable sources, but it might be overkill for small-scale or budget-conscious users. Tradeoff: higher initial cost and installation complexity for superior capacity and longevity.
Pros:- High heat transfer capacity up to 360kBtu/hr
- Robust steel shell with brazed contact points for durability
- Enhanced contact area with 10-20% performance increase
Cons:- Heavy and potentially harder to install for beginners
- Higher cost compared to smaller or simpler exchangers
Best for: Homeowners with larger outdoor wood furnace systems needing reliable, high-capacity heat exchange.
Not ideal for: Small household setups or DIY beginners seeking simple, inexpensive solutions.
- Size:18×20 inches
- Material:Steel shell with copper and aluminum components
- Heat Capacity:Up to 360kBtu/hr
- Fins:12 aluminum fins
- Copper Tubes:3 rows of 3/8 inch seamless copper
- Installation:Clamp or weld options
Our verdict“Ideal for users who prioritize capacity and durability in renewable energy setups despite higher complexity and investment.”
20×20 Water to Air Heat Exchanger Hot Water Coil Outdoor Wood Furnace
This 20×20 water-to-air heat exchanger is a solid choice for mid-sized outdoor furnace setups, offering a good balance between size and capacity. It features a large 108,279 BTU capacity at 180°F water, which is enough for most residential applications but less than the 140,000+ Btu/hr of the AB Water to Air Heat Exchanger 18×20. Its 3/8-inch copper seamless tubes and fins provide decent heat transfer, though not as optimized as the VEVOR model. The unit is well-packed for shipping, with metal port protectors and styrofoam, but its weight and size may pose installation challenges for smaller or less experienced DIYers. This makes it suitable for those needing reliable performance without the heft of larger units, although it might fall short for very large or high-demand systems. Tradeoff: moderate capacity in a more manageable size at a slightly higher price than smaller units.
Pros:- Capable of 108,279 BTU at 180°F water
- Seamless copper tubes with aluminum fins for decent efficiency
- Well-packaged for shipping with protective measures
Cons:- Lower capacity than larger models like AB 18×20
- Size and weight may require careful installation planning
Best for: Homeowners with medium-sized outdoor wood furnaces seeking reliable performance without overly large equipment.
Not ideal for: Large-scale commercial or high-capacity systems that require more robust heat transfer.
- Size:20×20 inches
- Material:Copper tubes and aluminum fins
- BTU Capacity:108,279 BTU at 180°F
- Tubes:3 rows of 3/8 inch seamless copper
- Shipping:Well-packaged with port protectors
- Application:Outdoor wood furnace heating
Our verdict“Best suited for moderate residential setups where size and capacity are balanced priorities.”

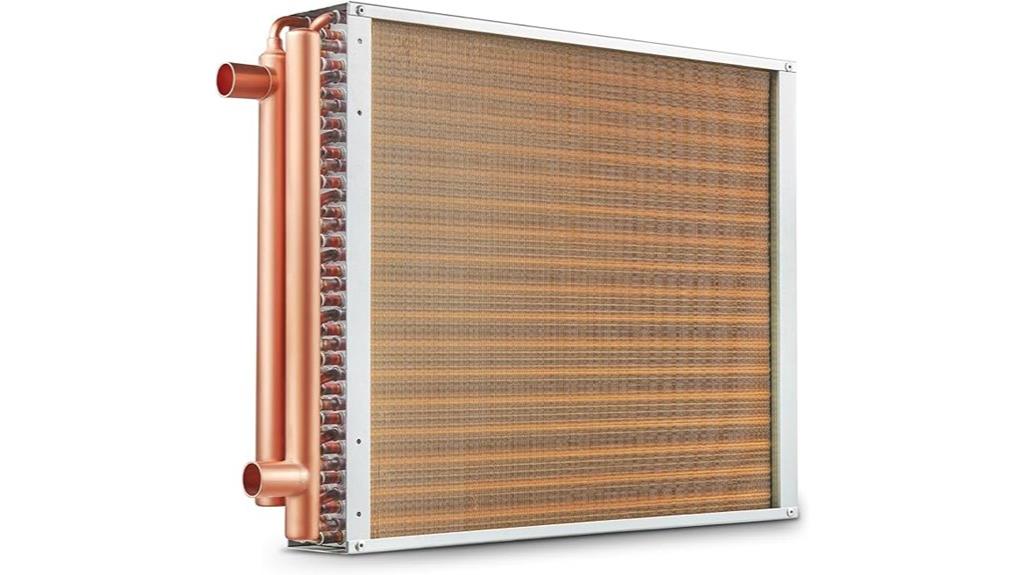

VEVOR Water to Air Heat Exchanger, 24 x 24 in Finned Tube HVAC Heat Exchanger Coil with Copper Tubes & Aluminum Fins, 225K BTU Output for Outdoor Wood Furnace, Hydronic Heating & Cooling Systems
The VEVOR 24×24 heat exchanger offers a substantial 225,000 BTU/hr capacity, making it a top pick for demanding outdoor furnace systems. Its construction with copper tubes and 290 fins maximizes thermal conductivity, giving it an edge over smaller or less sophisticated models like the Water to Air Heat Exchanger 16×20. Its large heat transfer area and high fins count provide outstanding performance across residential and commercial setups, with a durable epoxy coating helping reduce scale buildup. While the size and weight of this model require more planning during installation, it offers excellent long-term reliability and efficiency. This pick is perfect for larger systems, but its premium price and installation complexity may deter smaller-scale users. Tradeoff: higher cost and installation effort for maximum capacity and durability.
Pros:- High capacity of 225,000 BTU/hr
- Efficient copper tubes and aluminum fins for maximum heat transfer
- Leakproof construction with vacuum brazing and epoxy coating
Cons:- Heavy and requires careful installation planning
- Higher price point compared to smaller models
Best for: Large residential or small commercial systems needing high BTU output and durability.
Not ideal for: Small or budget-conscious users whose systems don’t require such high capacity.
- Size:24×24 inches
- BTU Output:225,000
- Fins:290 fins
- Tubes:3 rows of 3/8 inch copper
- Material:Copper and aluminum
- Application:Outdoor wood furnace, hydronic systems
Our verdict“Ideal for users with large-scale systems demanding high efficiency and long-term durability despite higher upfront costs.”

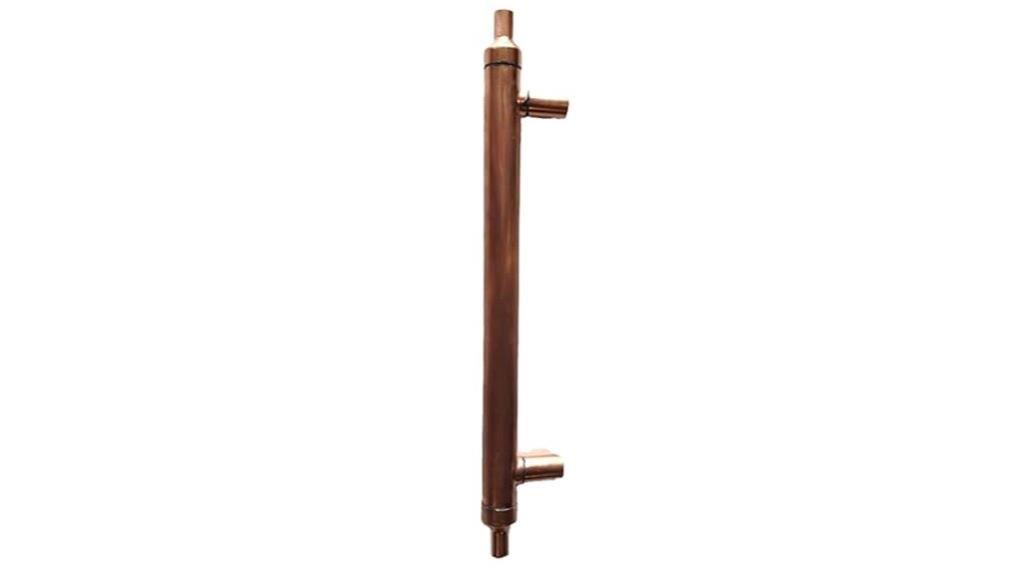

24″ Side Arm Heat Exchanger Outdoor Furnace Boiler Stove – Sweat
This 24-inch sidearm heat exchanger excels in flexibility and compatibility with existing hot water tanks, making it a favorite for retrofit projects. Its internal design with multiple tubes within the exterior shell offers a larger surface area—more than a traditional tube-in-tube design—translating into efficient heat transfer and quicker hot water response. Compared with the Water to Air Heat Exchanger 16×20, this model’s longer length and larger surface area optimize thermal exchange, especially in setups where space is constrained. Its pre-soldered, fully assembled configuration simplifies installation, but the heavy, solid copper construction demands careful handling. Suitable for those seeking an efficient, easy-to-install sidearm, yet less ideal for small or lightweight systems. Tradeoff: bulk and weight for increased efficiency and quick response times.
Pros:- Large surface area for efficient heat transfer
- Pre-soldered, fully assembled for easy installation
- Works with any existing hot water tank system
Cons:- Heavy due to solid copper construction
- Long length may complicate installation in tight spaces
Best for: DIYers installing or upgrading outdoor wood boiler systems who value quick hot water response and compatibility.
Not ideal for: Users with limited space or those needing lightweight, portable solutions.
- Length:29-1/4 inches
- Outer Tube:1-1/2 inches copper
- Connection:Sweat connections
- Surface Area:Increased surface for efficiency
- Material:Copper
- Application:Outdoor furnace hot water
Our verdict“Perfect for users who want quick hot water response and straightforward installation in larger or retrofit systems.”
16×20 Water to Air Heat Exchanger Hot Water Coil Outdoor Wood Furnace
The 16×20 water-to-air heat exchanger is a versatile choice for smaller outdoor furnace setups, offering around 108,000 BTU/hr capacity at 180°F water. Its compact size and efficient copper tubes with aluminum fins make it suitable for residential applications where space and ease of installation matter. Compared with larger units like the VEVOR 24×24, it provides a less intense but still reliable performance, especially for mid-sized systems. Its packaging ensures minimal shipping damage, and its straightforward sweat connections facilitate easier installation for DIYers. However, its capacity limits make it unsuitable for high-demand systems, and it may require additional units for larger setups. This makes it ideal for small to medium residential systems but less so for heavy-duty commercial use. Tradeoff: smaller capacity for easier handling and installation.
Pros:- Capable of approximately 108,000 BTU/hr
- Compact and easy to install
- Efficient copper and aluminum construction
Cons:- Limited capacity for larger systems
- Less suitable for high-demand applications
Best for: Homeowners with small to medium outdoor wood furnaces seeking reliable, easy-to-install heat exchange.
Not ideal for: Large or high-capacity systems that demand more BTU output.
- Size:16×20 inches
- BTU Capacity:108,279 BTU
- Tubes:3/8 inch seamless copper
- Material:Copper and aluminum
- Connection:Sweat
- Application:Outdoor wood furnace heating
Our verdict“A practical choice for small to medium outdoor furnace systems prioritizing ease of setup and reliable performance.”

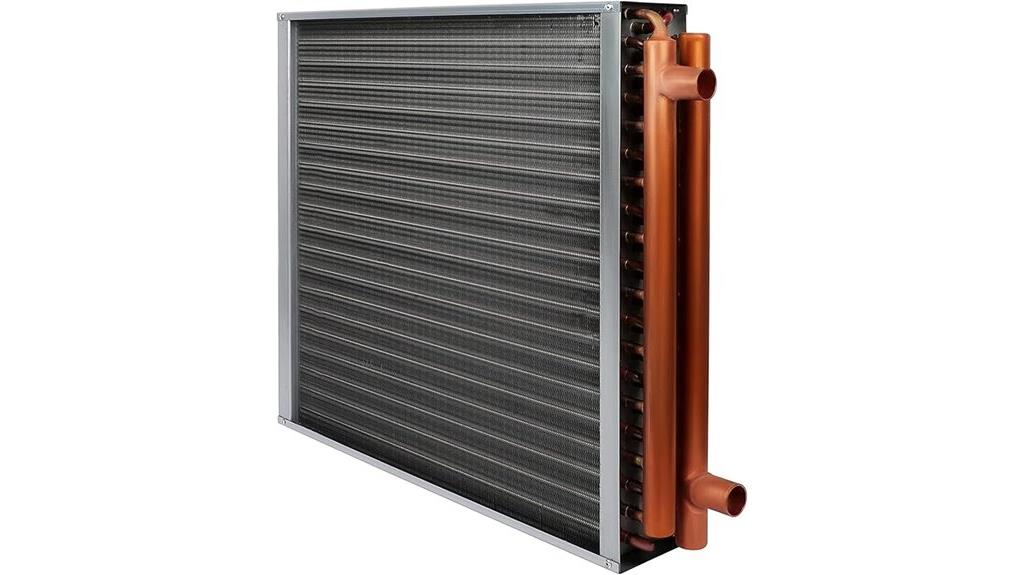

VEVOR Water to Air Heat Exchanger, 14 x 14 in Finned Tube HVAC Heat Exchanger Coil with Copper Tubes & Aluminum Fins, 65K BTU Output for Outdoor Wood Furnace, Hydronic Heating & Cooling Systems
This VEVOR model stands out for its high efficiency, thanks to copper tubes and aluminum fins that ensure excellent heat transfer. Its large 14 x 14 inch transfer area and 169 fins maximize performance, especially compared with smaller units like the 10×10 model, which offers less capacity. Built with durable, epoxy-coated fins and pure copper tubing, it resists scale buildup and withstands temperatures from -40 to 356 °F, making it suitable for harsh outdoor conditions. It’s ideal for residential outdoor wood furnaces or large farms needing reliable, long-lasting heat exchange. However, its size and weight could be a drawback for tight spaces or portable applications, and high-pressure brazing adds to manufacturing complexity. This pick is best for homeowners or commercial users seeking a robust, adaptable water-to-air exchanger.
Pros:- High thermal conductivity with copper tubes and aluminum fins
- Wide operating temperature range (-40 to 356 °F)
- Large heat transfer area improves efficiency
Cons:- Relatively large and heavy, may be difficult to install in tight spaces
- Complex manufacturing process could impact cost and availability
Best for: Homeowners or small to medium commercial operations needing a durable, efficient outdoor heat exchanger with broad application potential.
Not ideal for: Users with limited space or seeking a lightweight, portable unit due to its sizable footprint and weight.
- Heat Transfer Area:14 x 14 inches
- Fins:169 fins
- Copper Tubes:3 rows of 3/8 inch
- BTU Output:65,000 BTU/hr
- Operating Temperature Range:-40 to 356 °F
- Construction Material:Copper tubes & Aluminum fins
Our verdict“This heat exchanger suits those who prioritize reliability and efficiency in outdoor heating setups, despite its size.”
Water to Air Heat Exchanger 18×18 1″ Copper Ports Hot Water Coil Outdoor Wood Furnace
Compared to smaller units like the 16×16 model, this 18×18 water-to-air exchanger offers a substantial capacity of up to 120,000 BTU, making it ideal for larger outdoor wood furnaces. Its combination of 12 aluminum fins and 3 rows of seamless copper tubes enhances heat transfer by 10-20%, which significantly improves efficiency for demanding applications. Its galvanized steel core and epoxy-coated fins provide durability in outdoor environments, and installation is straightforward with options for pipeline connection or welding. However, its larger size could pose challenges in confined spaces, and the high capacity comes with a higher cost and weight. This unit is best suited for users needing maximum heat output and durability for large outdoor heating setups.
Pros:- High heat output up to 120,000 BTU
- Enhanced heat transfer performance with multiple fins and copper tubes
- Durable galvanized steel core and epoxy-coated fins for outdoor use
Cons:- Large dimensions may limit installation options
- Higher price point due to capacity and construction quality
Best for: Owners of large outdoor wood furnaces requiring high BTU capacity and long-lasting performance.
Not ideal for: Small-scale or portable applications where space and weight are limiting factors due to its size and weight.
- Heat Output:Up to 120,000 BTU
- Fins:12 fins per inch
- Copper Ports:1 inch
- Tube Rows:3
- Material:Galvanized steel & copper
- Dimensions:18 x 18 inches
Our verdict“Ideal for large outdoor heating needs where maximum capacity and durability outweigh size and cost considerations.”
Water to Air Heat Exchanger 16×16 with 1″ Copper Ports for Outdoor Wood Furnaces, Residential Heating and Cooling, and Forced Air Heating
This 16×16 water-to-air heat exchanger offers a solid 80,000 BTU capacity, making it well-suited for residential outdoor furnace setups. Its design features 12 aluminum fins and 3 rows of seamless copper tubes, providing efficient heat transfer with increased contact area. Supported by a steel shell and epoxy resin-coated fins, it combines durability with corrosion resistance. The unit’s compact size allows easy integration into existing forced air systems, making it an attractive choice for homeowners looking to upgrade or install outdoor heating without requiring large space. A tradeoff is its slightly lower capacity compared to larger models like the 18×18 unit, which might limit effectiveness in very cold climates or larger properties. This model makes the most sense for residential users needing a reliable, space-saving solution.
Pros:- Compact and easy to install in restricted spaces
- High thermal efficiency with copper and aluminum materials
- Durable construction with epoxy-coated fins
Cons:- Limited BTU capacity compared to larger units
- Less suitable for very cold climates or large properties
Best for: Homeowners with outdoor furnaces seeking a reliable, space-efficient heat exchanger for residential heating and cooling.
Not ideal for: Large-scale or commercial operations requiring very high BTU outputs or extensive heating capacity due to its smaller size.
- Heat Output:80,000 BTU
- Fins:12 fins per inch
- Copper Ports:1 inch
- Tube Rows:3
- Material:Copper & aluminum
- Dimensions:16 x 16 inches
Our verdict“This pick works best for residential applications where space and ease of installation are priorities, and capacity needs are moderate.”
17″ Side Arm Heat Exchanger Outdoor Furnace Boiler Stove
This 17-inch side arm heat exchanger is designed for specialized applications like outdoor furnace or boiler stoves. Its unique side arm configuration allows for direct integration into existing systems, providing an efficient heat transfer path. While it offers a practical solution for retrofits or systems with limited space, its capacity and heat output are less clearly specified, which may limit its effectiveness for larger setups. Its compatibility with specific boiler designs makes it ideal for users with tailored installation requirements, but it’s not a general-purpose unit. Compared to models like the 16×16 or 18×18 exchangers, it may lack the broad application flexibility. This product is best suited for users with compatible boiler systems needing a compact, side-arm heat exchanger.
Pros:- Designed for direct side-arm installation
- Compact and space-efficient
- Suitable for retrofits and specific boiler models
Cons:- Limited capacity and unclear heat output
- Less versatile for different system types
Best for: Owners of specific boiler or stove systems requiring a side-arm configuration for heat exchange.
Not ideal for: General outdoor furnace users or those needing higher BTU output, due to its specialized design and unspecified capacity.
- Design:Side arm
- Length:17 inches
- Application:Outdoor boiler or stove
Our verdict“This exchanger suits niche applications with compatible boiler setups where installation flexibility is a priority over capacity.”
VEVOR Heat Exchanger Water to Air, 16″ x 16″ with 3-Row 3/8″ Copper Ports, 193 Aluminum Fins Heat Exchanger for Outdoor Wood Furnaces, Residential Heating & Cooling, and Forced Air Heating
Compared to smaller or less robust units, this VEVOR 16×16 water-to-air exchanger offers a high-quality, leak-resistant construction with copper brazing at all contact points, ensuring durability under high pressure and temperature. Its 193 fins per inch and three rows of copper ports deliver exceptional heat exchange performance, making it suitable for demanding outdoor heating applications. The epoxy-coated fins provide corrosion resistance, extending lifespan in outdoor environments. The unit generates up to 160,000 BTU/hr, making it ideal for large properties or commercial setups. The main tradeoff is its higher price and weight, which could complicate installation and transportation. This model is best for users needing maximum reliability and capacity in heavy-duty outdoor heating systems.
Pros:- High BTU output of 160,000 BTU/hr
- Leak-resistant, full copper brazing construction
- Exceptional corrosion resistance with epoxy-coated fins
Cons:- Heavy and large, may require reinforced installation support
- Higher cost compared to standard models
Best for: Large-scale outdoor heating or commercial applications requiring high BTU capacity and long-term durability.
Not ideal for: Small residential users or those with limited space, due to its size and cost.
- Heat Output:160,000 BTU/hr
- Fins:193 fins per inch
- Copper Ports:3/8 inch, 3 rows
- Construction:Copper brazed, epoxy-coated fins
- Dimensions:16 x 16 inches
Our verdict“Best suited for extensive outdoor heating needs where capacity and durability justify the investment and installation effort.”
How We Picked
Our evaluation focused on performance, build quality, versatility, and ease of installation. We prioritized products with proven durability and efficient heat transfer, especially for outdoor conditions. Size options were considered to match a range of furnace capacities, while cost-effectiveness was assessed based on features and longevity. These criteria helped us identify models that balance value and reliability, explaining why certain products rank higher than others. Each selection reflects a different use case, from residential heating to larger industrial setups.Factors to Consider When Choosing Heat Exchanger For Outdoor Furnace
Choosing the right heat exchanger for your outdoor furnace involves understanding several key factors. Beyond just size and cost, materials, compatibility, and installation considerations play vital roles. A well-chosen exchanger can improve efficiency, extend lifespan, and reduce maintenance needs. Being aware of these broader issues helps prevent common mistakes, like oversizing or selecting incompatible materials, which can lead to poor performance or early failure.Size and BTU Capacity
Matching the size of the heat exchanger to your furnace’s output is critical. An undersized unit won’t provide enough heat, while an oversized one can cause inefficiency and unnecessary expense. Consider your heating load and select a model with appropriate BTU ratings. Larger units like the VEVOR 24×24 are suited for high-capacity systems, but they may require more space and higher installation costs. Always check your furnace’s specifications before choosing a size to ensure optimal performance.
Material Quality and Durability
Materials like copper and stainless steel are common because they resist corrosion and facilitate efficient heat transfer. Copper is highly conductive but can be prone to corrosion if not properly maintained, while stainless steel offers excellent longevity but may have slightly lower thermal conductivity. Investing in high-quality materials pays off over the long term, especially for outdoor setups exposed to weather elements. Cheaper materials might save money upfront but often lead to faster wear and higher maintenance costs.
Compatibility and Connection Size
Ensuring the heat exchanger matches your existing piping and fittings is essential. Pay attention to port sizes and connection types—sweat, threaded, or quick-connect. Mismatched sizes can lead to leaks or the need for adapters, which add complexity and cost. Some models, like those with 1″ copper ports, are more versatile, fitting a range of systems. Double-check your system’s specifications and consider future expansion when selecting a model.
Ease of Installation and Maintenance
Installation ease varies widely among models. Simpler designs with straightforward connections save time and reduce errors. Maintenance considerations include access for cleaning and durability of components. Finned tube options like VEVOR’s units tend to be easier to service due to their accessible design. However, more complex water-to-water plates may require specialized skills and tools, which could increase setup costs. Consider your technical comfort level or professional support needs when choosing.
Cost and Long-Term Value
Initial cost is just one part of the picture; durability and efficiency determine long-term value. Cheaper units may seem attractive but often need replacement sooner, especially in harsh outdoor environments. Higher-quality models with better materials and design features tend to last longer and perform more reliably. Balance your budget with the potential savings in maintenance and energy efficiency over time. Sometimes, investing more upfront results in better overall value.
Frequently Asked Questions
How do I know what size heat exchanger I need for my outdoor furnace?
Determining the right size depends on your furnace’s heat output and your heating requirements. Check your furnace’s BTU rating and match it with a heat exchanger that can handle at least that capacity. A unit that’s too small will struggle to keep up, while one that’s too large may waste energy and complicate installation. Consulting your furnace specifications and considering your home’s size will help you select a properly sized exchanger that delivers reliable performance.
Can I install a water-to-air heat exchanger myself, or should I hire a professional?
Installing a water-to-air heat exchanger can be straightforward if you have basic plumbing and HVAC skills, especially for smaller models. However, for larger units or complex systems, hiring a professional ensures proper installation, leak-free connections, and optimal performance. Incorrect installation can lead to inefficiency, leaks, or damage, so weigh your comfort level and experience before deciding to DIY. Professional installation also often comes with warranties that protect your investment.
What maintenance does a heat exchanger for outdoor furnace typically require?
Regular maintenance includes cleaning to prevent corrosion and buildup, especially for water-to-air units exposed to the elements. Check for leaks, corrosion, and blockages periodically. Flushing or draining the system may be necessary if mineral buildup occurs. Using corrosion-resistant materials like stainless steel can reduce maintenance needs. Proper maintenance extends the lifespan of your exchanger and keeps your system running efficiently.
Are water-to-water heat exchangers better than water-to-air for residential outdoor heating?
Water-to-water heat exchangers often provide more efficient heat transfer for hydronic systems, offering better temperature control and lower energy losses. They are ideal if you already have a water-based heating system or radiant floor setup. Conversely, water-to-air exchangers tend to be simpler to install and maintain, making them more popular for general residential use. Your choice should depend on your existing system, space constraints, and heating goals.
How does the size of fins on a heat exchanger influence its performance?
Finned designs increase surface area, which enhances heat transfer efficiency. Larger or more closely spaced fins, like those on VEVOR models, can improve heating and cooling performance, especially in compact units. However, more fins can also trap dust or debris, requiring more frequent cleaning. Balance fin size and density with ease of maintenance to find a model that offers high efficiency without complicating upkeep.
Conclusion
For most homeowners seeking a reliable, all-around performer, the Water to Air Heat Exchanger 12×15 offers an excellent balance of size, durability, and value. Those with larger systems or higher BTU needs will find the VEVOR 24×24 Finned Tube Coil most suitable, thanks to its impressive output. Beginners or those installing on a tight budget should consider simpler, smaller models like the Water to Air 10×10 for ease of setup. For specialized hydronic systems, the AB Plate Heat Exchanger provides high efficiency and longevity. Ultimately, your choice depends on your system size, budget, and installation environment.
